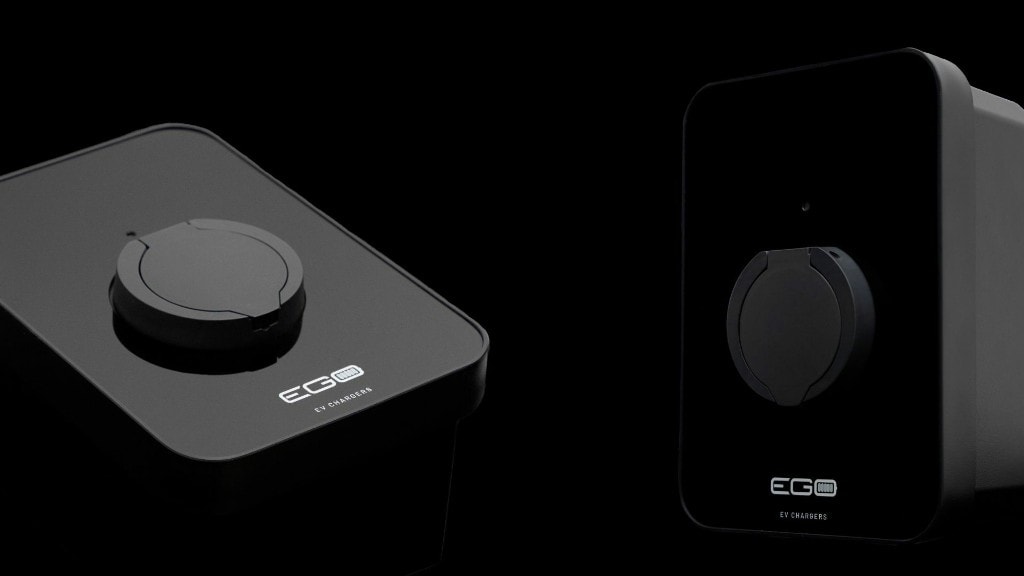

EGO EV 7.4 kW Charger
The Irish-designed EV charging solution for homes and businesses, offering reliability, efficiency, and smart charging capabilities.
Key Features
Designed to deliver the best charging experience, securely and efficiently.
7.4 kW Charging Power
Efficiently charge your EV with our powerful 7.4 kW single-phase charger.
Irish Design & Engineering
Proudly designed and engineered in Ireland for reliability and performance.
IP54 Rated
Weather-resistant enclosure for both indoor and outdoor installation.
Smart Connectivity
Optional app control and solar integration capabilities.
Load Balancing
Adjustable charging current from 6 A to 32 A with dynamic load balancing.
Built-in Protection
Integral RCD Earth Leakage protection for enhanced safety.
Technical Specifications
Complete technical specifications, certification details, and installation guidelines.
Electrical Specifications
The EGO EV Charger operates within a supply voltage range of 220–240 VAC at 50 Hz, delivering 7.4 kW in a single-phase configuration. With a Type 2 socket (IEC 62196-2), the charger supports Mode 3 communication (IEC 61851-1 / SAE J1772). Adjustable current from 6 A to 32 A with integral RCD Earth Leakage protection.
- Supply Voltage: 220–240 VAC @ 50 Hz
- Output Power: 7.4 kW (single-phase)
- Type 2 socket (IEC 62196-2)
- Mode 3 communication protocol (IEC 61851-1)
- Adjustable charging current: 6 A to 32 A
- Integral RCD Earth Leakage protection
Mechanical & Environmental
Wall-mounted design suitable for indoor and outdoor use. Operates at −10 °C to +50 °C with 5–95 % humidity (non-condensing). UL94 HB Fire Rated ABS enclosure with IP54 protection, Insulation Class II.
- Wall-mounted installation
- Indoor/outdoor (IP54 rated)
- Operating temp: −10 °C to +50 °C
- Humidity: 5 % to 95 % (non-condensing)
- Enclosure: UL94 HB Fire Rated ABS
- Insulation Class II
Optional Features
The charger can be extended with RFID authentication, tethered cable, ISO 15118 V2G support, solar charging via CT clamp, and co-branding (MOQs apply).
- RFID card reader for secure authentication
- Tethered Type 1 / Type 2 cable (5 m)
- ISO 15118 support (V2G and Plug & Charge)
- Solar charging capability (additional CT clamp)
- Co-branding available (MOQs apply)
Standards & Compliance
CE marked and compliant with EMC Directive 2014/30/EU, IEC 61851-1, IEC 62196-2, EN 55032, 61000-3 and 61000. Designed and tested to EN 61851 for electric vehicle conductive charging systems.
- CE Marked
- EMC Directive 2014/30/EU
- IEC 61851-1
- IEC 62196-2
- EN 55032
- 61000-3 & 61000
